♦ Materias primas: PE100, PE4710
♦ Diámetro: 20mm-110mm, 1/2 Pulgadas - 4 Pulgadas
♦ SDR11-PN16, SDR13.6-PN12.5, SDR17-PN10
♦ Normativas: ISO 4427 / ASTM F714 / EN 12201

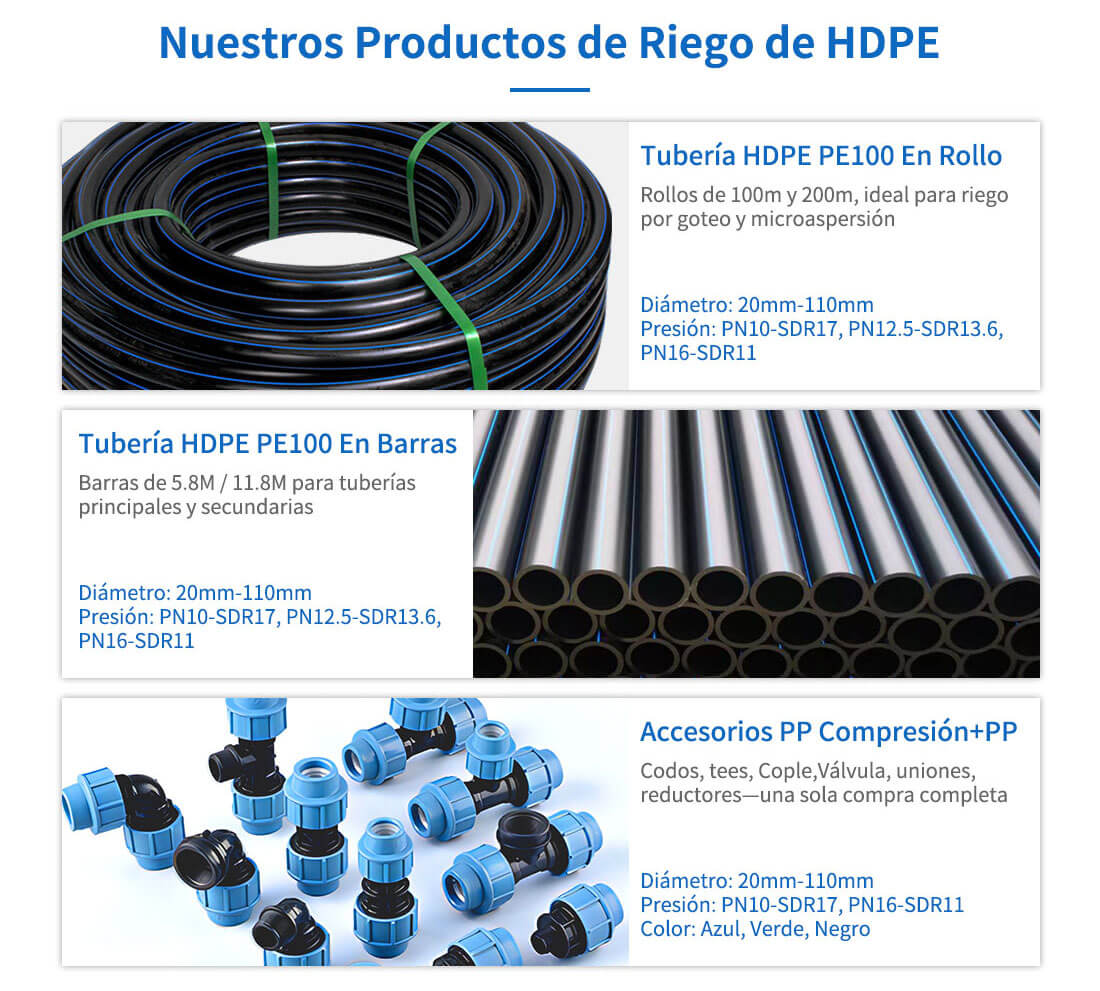

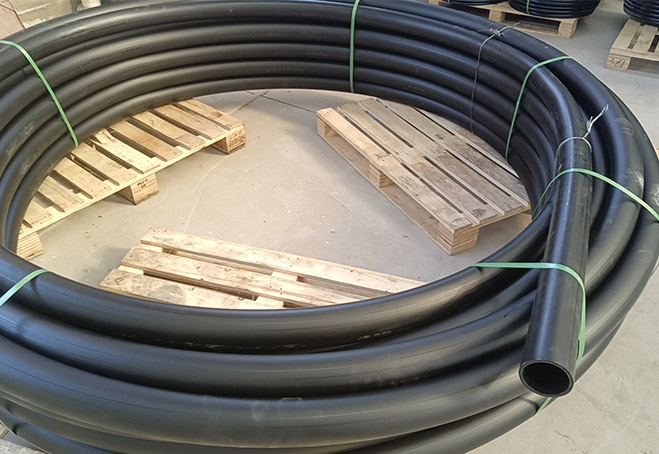

♦ Longitud :Rollos de 100m y 200m. 5.8M/11.8M one piece
♦ Origen: China. MOQ: 1×20FT
Email: [email protected]
Descripción
[Si necesita presupuestos, catálogos, certificados, informes de pruebas, solicitar muestras gratuitas o tiene cualquier otra pregunta, no dude en ponerse en contacto con nuestro equipo.]
Email: [email protected]
WhatsApp: +86 15093100892
Parametros| ISO 4427 Pipe Series | S 3.2 | S 4 | S 5 | S 6,3 | S 8 | S 10 | |
| Metric Size | SDR 7.4 | SDR 9 | SDR 11 | SDR 13.6 | SDR 17 | SDR 21 | |
| Nominal Pressure PE 100 | PN = 25 bar | PN = 20 bar | PN = 16 bar | PN = 12,5 bar | PN = 10 bar | PN = 8 bar | |
| Nominal Size DN (mm) |
Equiv Size (in) |
Minimum Wall (mm) |
Minimum Wall (mm) |
Minimum Wall (mm) |
Minimum Wall (mm) |
Minimum Wall (mm) |
Minimum Wall (mm) |
| 20 | 1/2" | 3.0 | 2.3 | 2.0 | 1.8 | 1.200 | 1.000 |
| 25 | 3/4" | 3.5 | 3.0 | 2.3 | 2.0 | 1.500 | 1.200 |
| 32 | 1 | 4.4 | 3.6 | 3.0 | 2.4 | 2.000 | 1.500 |
| 40 | 1 1/4 | 5.5 | 4.5 | 3.7 | 3.0 | 2.400 | 2.000 |
| 50 | 1 1/2 | 6.9 | 5.6 | 4.6 | 3.7 | 3.000 | 2.400 |
| 63 | 2 | 8.6 | 7.1 | 5.8 | 4.7 | 3.800 | 3.000 |
| 75 | 2 1/2 | 10.3 | 8.4 | 6.8 | 5.6 | 4.500 | 3.600 |
| 90 | 3 | 12.3 | 10.1 | 8.2 | 6.7 | 5.400 | 4.300 |
| 110 | 4 | 15.1 | 12.3 | 10.0 | 8.1 | 6.600 | 5.300 |
| 125 | 5 | 17.1 | 14.0 | 11.4 | 9.2 | 7.400 | 6.000 |
| Nominal Pressure PE 4710 |
DR 7 | DR 9 | DR 11 | DR 13.5 | DR 17 | DR 21 | DR 26 | |
| 333 psi | 250 psi | 200 psi | 160 psi | 125 psi | 100 psi | 80 psi | ||
| Nominal Pipe Size | IPS OD (in) |
Min Wall | Min Wall | Min Wall | Min Wall | Min Wall | Min Wall | Min Wall |
| 2″ | 2.375 | 0.339 | 0.264 | 0.216 | 0.176 | 0.140 | – | – |
| 3″ | 3.500 | 0.500 | 0.389 | 0.318 | 0.259 | 0.206 | – | – |
| 4″ | 4.500 | 0.643 | 0.500 | 0.409 | 0.333 | 0.265 | 0.214 | – |
| 6″ | 6.625 | 0.946 | 0.736 | 0.602 | 0.491 | 0.390 | 0.315 | 0.255 |
| 8″ | 8.625 | 1.232 | 0.958 | 0.784 | 0.639 | 0.507 | 0.411 | 0.332 |
| 10″ | 10.750 | 1.536 | 1.194 | 0.977 | 0.796 | 0.632 | 0.512 | 0.413 |
