Δ Materias primas: PE100, PE4710, PE100RC
Δ Normas : EN12201, ISO 4427, AS/NZS 4129
Δ Diámetro: DN63-800mm (Mayor tamaño puede ser personalizado)
Δ Presión: SDR9, SDR11, SDR13.6, SDR17
Δ Certificados: UL, WRAS, NSF, ISO, CE
Δ Color: Negro, (los otros colores pueden ser personalizados)
Email: [email protected]
DescripciónLos accesorios de fusión a tope de HDPE desarrollados y fabricados por Puhui tienen excelentes propiedades de fuerza y resistencia al desgaste.
Puhui HDPE Butt Fusion Fittings son ampliamente utilizados en la conexión de tuberías de PE.
Ventajas de los accesorios HDPE
No tóxico, higiénico
Los accesorios de tubería de PE no son tóxicos ni tienen olor. Tras un estricto control sanitario, son materiales de construcción ecológicos y nunca producen incrustaciones, lo que puede mejorar eficazmente la calidad del agua.
Resistencia a la corrosión
El PE es un material inerte resistente a diversos medios químicos.
Gran tenacidad
El alargamiento a la rotura de los tubos de HDPE es generalmente superior al 500%. Para el asentamiento desigual de la construcción de ingeniería de cimentación, su adaptabilidad es muy fuerte y el rendimiento sísmico es bueno.
Larga vida de uso
Los accesorios de tubería de PE enterrados se utilizan normalmente durante más de 70 años.

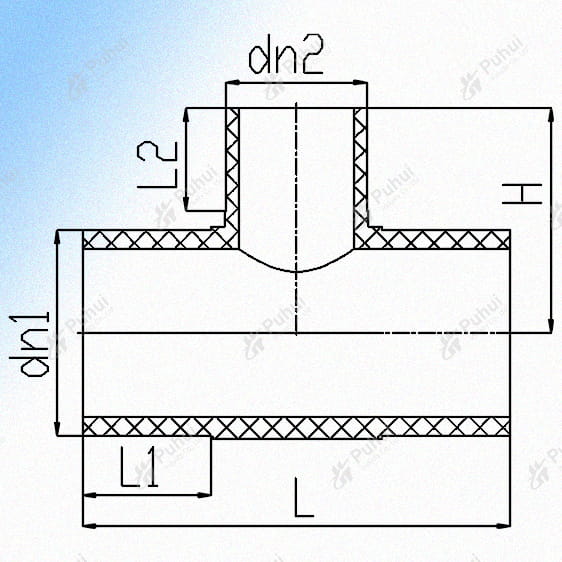

Parametros
|
dn-dn1 |
L |
L1 |
L2 |
H |
e |
e2 |
|
Medida(dn-dn1) |
mm |
mm |
mm |
mm |
SDR13.6 |
SDR11 |
|
T75-50 |
199 |
70 |
55 |
94 |
|
6.8*4.6 |
|
T75-63 |
220 |
70 |
65 |
107 |
|
6.8*5.8 |
|
T90-50 |
243 |
80 |
65 |
115 |
6.7*3.7 |
8.2*4.6 |
|
T90-63 |
243 |
80 |
68 |
123 |
6.7*4.7 |
8.2*5.8 |
|
T90-75 |
270 |
80 |
75 |
130 |
6.7*5.6 |
8.2*6.8 |
|
T110-50 |
242 |
83 |
60 |
125 |
8.1*3.7 |
10*4.6 |
|
T110-63 |
242 |
83 |
62 |
130 |
8.1*4.7 |
10*5.8 |
|
T110-75 |
275 |
83 |
80 |
138 |
8.1*5.6 |
10*6.8 |
|
T110-90 |
275 |
83 |
82 |
140 |
3.2*6.7 |
10*8.2 |
|
T125-63 |
305 |
80 |
70 |
145 |
9.2*4.7 |
11.4*5.8 |
|
T125-75 |
305 |
80 |
70 |
145 |
9.2*5.6 |
11.4*6.8 |
|
T125-90 |
305 |
80 |
75 |
150 |
9.2*6.7 |
11.4*8.2 |
|
T125-110 |
305 |
80 |
75 |
150 |
9.2*8.1 |
11.4*10 |
|
T140-63 |
253 |
75 |
70 |
150 |
10.3*4.7 |
12.7*5.8 |
|
T140-75 |
253 |
75 |
75 |
155 |
10.3*5.6 |
12.7*6.8 |
|
T140-90 |
253 |
75 |
75 |
155 |
10.3*6.7 |
12.7*90 |
|
T140-110 |
253 |
70 |
80 |
160 |
10.3*8.1 |
12.7*10 |
|
T140-125 |
320 |
80 |
80 |
160 |
10.3*9.2 |
12.7*11.4 |
|
T160-50 |
250 |
90 |
70 |
170 |
11.8*3.7 |
14.6*4.6 |
|
T160-63 |
278 |
90 |
75 |
170 |
11.8*4.7 |
14.6*5.8 |
|
T160-75 |
277 |
90 |
75 |
170 |
11.8*5.6 |
14.6*6.8 |
|
T160-90 |
272 |
85 |
85 |
170 |
11.8*6.7 |
14.6*8.2 |
|
T160-110 |
333 |
100 |
80 |
175 |
11.8*8.1 |
14.6*10 |
|
T160-125 |
380 |
98 |
100 |
190 |
11.8*9.2 |
14.6*11.4 |
|
T160-140 |
383 |
100 |
100 |
195 |
11.8*10.3 |
14.6*12.7 |
|
T180-63 |
270 |
85 |
75 |
180 |
13.3*4.7 |
16.4*5.8 |
|
T180-75 |
270 |
85 |
75 |
180 |
13.3*5.6 |
16.4*6.8 |
|
T180-90 |
270 |
85 |
80 |
180 |
13.3*6.7 |
16.4*8.2 |
|
T180-110 |
270 |
85 |
85 |
185 |
13.3*8.1 |
16.4*10.0 |
|
T180-160 |
400 |
90 |
85 |
185 |
13.3*11.8 |
16.4*14.6 |
|
T200-63 |
338 |
95 |
75 |
195 |
14.7*4.7 |
18.2*5.8 |
|
T200-75 |
338 |
95 |
80 |
195 |
14.7*5.6 |
18.2*6.8 |
|
T200-90 |
338 |
95 |
85 |
195 |
14.7*6.7 |
18.2*8.2 |
|
T200-110 |
338 |
95 |
85 |
195 |
14.7*8.1 |
18.2*10 |
|
T200-160 |
368 |
95 |
85 |
200 |
14.7*11.8 |
18.2*14.6 |
|
T225-63 |
365 |
110 |
80 |
210 |
16.6*4.7 |
20.5*5.8 |
|
T225-75 |
365 |
110 |
85 |
220 |
16.6*5.6 |
20.5*6.8 |
|
T225-90 |
365 |
110 |
90 |
230 |
16.6*6.7 |
20.5*8.2 |
|
T225-110 |
365 |
110 |
100 |
230 |
16.6*8.1 |
20.5*10.0 |
|
T225-160 |
485 |
110 |
110 |
242 |
16.6*11.8 |
20.5*14.6 |
|
T225-200 |
485 |
110 |
110 |
242 |
16.6*14.7 |
20.5*18.2 |
|
T250-63 |
365 |
110 |
85 |
235 |
18.4*4.7 |
22.7*5.8 |
|
T250-75 |
365 |
110 |
90 |
235 |
18.4*5.6 |
22.7*6.8 |
|
T250-90 |
365 |
110 |
100 |
245 |
18.4*6.7 |
22.7*8.2 |
|
T250-110 |
365 |
110 |
110 |
245 |
18.4*8.1 |
22.7*10 |
|
T250-160 |
505 |
110 |
110 |
250 |
18.4*11.8 |
22.7*14.6 |
|
T250-200 |
505 |
110 |
110 |
250 |
18.4*14.7 |
22.7*18.2 |
|
T280-63 |
300 |
100 |
90 |
240 |
20.6*4.7 |
25.4*5.8 |
|
T280-75 |
300 |
100 |
90 |
240 |
20.6*5.6 |
25.4*6.8 |
|
T280-90 |
300 |
100 |
90 |
240 |
20.6*6.7 |
25.4*8.2 |
|
T280-110 |
300 |
100 |
100 |
240 |
20.6*8.1 |
25.4*10 |
|
T280-160 |
387 |
100 |
100 |
250 |
20.6*11.8 |
25.4*14.6 |
|
T280-200 |
387 |
100 |
105 |
250 |
20.6*14.7 |
25.4*18.2 |
|
T280-250 |
530 |
110 |
105 |
260 |
20.6*18.4 |
25.4*22.7 |
|
T315-63 |
370 |
110 |
90 |
270 |
23.2*4.7 |
28.6*5.8 |
|
T315-75 |
370 |
110 |
90 |
270 |
23.2*5.6 |
28.6*6.8 |
|
T315-90 |
370 |
110 |
100 |
280 |
23.2*6.7 |
28.6*8.2 |
|
T315-110 |
370 |
110 |
110 |
280 |
23.2*8.1 |
28.6*10 |
|
T315-160 |
460 |
110 |
110 |
285 |
23.2*11.8 |
28.6*14.6 |
|
T315-200 |
460 |
110 |
110 |
285 |
23.2*14.7 |
28.6*18.2 |
|
T315-250 |
575 |
103 |
110 |
285 |
23.2*18.4 |
28.6*22.7 |
|
T355-90 |
330 |
110 |
100 |
287 |
21.1*5.4 |
32.2*8.2 |
|
T355-110 |
350 |
110 |
100 |
287 |
21.1*6.6 |
32.2*10 |
|
T355-160 |
400 |
110 |
100 |
287 |
21.1*9.5 |
32.2*14.6 |
|
T355-200 |
440 |
110 |
100 |
287 |
21.1*11.9 |
32.2*18.2 |
|
T355-250 |
490 |
110 |
100 |
287 |
21.1*14.8 |
32.21*22.7 |
|
T355-315 |
555 |
110 |
100 |
287 |
21.1*18.7 |
32.21*28.6 |
|
T400-90 |
340 |
110 |
100 |
310 |
23.7*5.4 |
36.3*8.2 |
|
T400-110 |
360 |
110 |
100 |
310 |
23.7*6.6 |
36.3*10 |
|
T400-160 |
400 |
110 |
100 |
310 |
23.7*9.5 |
36.3*14.6 |
|
T400-200 |
450 |
110 |
100 |
310 |
23.7*11.9 |
36.3*18.2 |
|
T400-250 |
490 |
110 |
100 |
310 |
23.7*14.8 |
36.3*22.7 |
|
T400-315 |
555 |
110 |
100 |
310 |
23.7*18.7 |
36.3*28.6 |
|
T400-355 |
595 |
110 |
100 |
310 |
23.7*21.1 |
36.3*32.2 |
|
T450-90 |
375 |
120 |
120 |
365 |
26.7*5.4 |
40.9*8.2 |
|
T450-110 |
375 |
120 |
120 |
365 |
26.7*6.6 |
40.9*10 |
|
T450-125 |
464 |
150 |
120 |
365 |
26.7*7.4 |
40.9*11.4 |
|
T450-160 |
464 |
130 |
120 |
365 |
26.7*9.5 |
40.9*14.6 |
|
T450-200 |
464 |
120 |
120 |
365 |
26.7*11.9 |
40.9*18.2 |
|
T450-225 |
545 |
150 |
130 |
375 |
26.7*13.4 |
40.9*20.5 |
|
T450-250 |
545 |
140 |
130 |
375 |
26.7*14.8 |
40.9*22.7 |
|
T450-280 |
600 |
140 |
140 |
385 |
26.7*16.6 |
40.9*25.4 |
|
T450-315 |
600 |
130 |
140 |
385 |
26.7*18.7 |
40.9*28.6 |
|
T450-355 |
660 |
140 |
160 |
405 |
26.7*21.1 |
40.9*32.2 |
|
T450-400 |
670 |
120 |
160 |
405 |
26.7*23.7 |
45.4*36.3 |
|
T500-110 |
398 |
130 |
135 |
420 |
29.7*6.6 |
45.4*10 |
|
T500-160 |
495 |
140 |
135 |
420 |
29.7*9.5 |
45.4*14.6 |
|
T500-200 |
495 |
135 |
135 |
420 |
29.7*11.9 |
45.4*18.2 |
|
T500-225 |
545 |
150 |
135 |
420 |
29.7*13.4 |
45.4*20.5 |
|
T500-250 |
545 |
135 |
135 |
420 |
29.7*14.8 |
45.4*22.7 |
|
T500-280 |
630 |
155 |
145 |
430 |
29.7*16.6 |
45.4*25.4 |
|
T500-315 |
635 |
145 |
145 |
430 |
29.7*18.7 |
45.4*28.6 |
|
T500-355 |
700 |
150 |
160 |
445 |
29.7*21.1 |
45.4*32.2 |
|
T500-400 |
705 |
140 |
160 |
445 |
29.7*23.7 |
45.4*36.3 |
|
T500-450 |
800 |
150 |
170 |
455 |
29.7*26.7 |
45.4*40.9 |
