Materias primas: PE100
Normas: ISO 4427 / EN 12201
Diámetro : DN63mm-2000mm
Presión : SDR33 - SDR11
Certificados : ISO, CE
Longitud : 5.8mts/largo en 20ft , 11.8-12mts/largo en 40ft
Color: Naranja (color puede ser personalizado)
Email: [email protected]

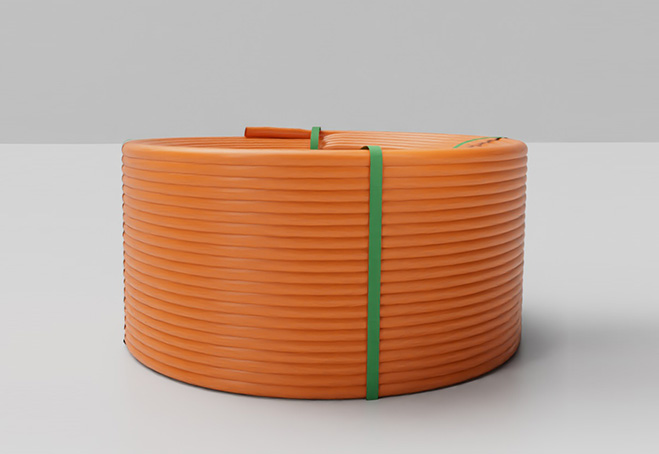

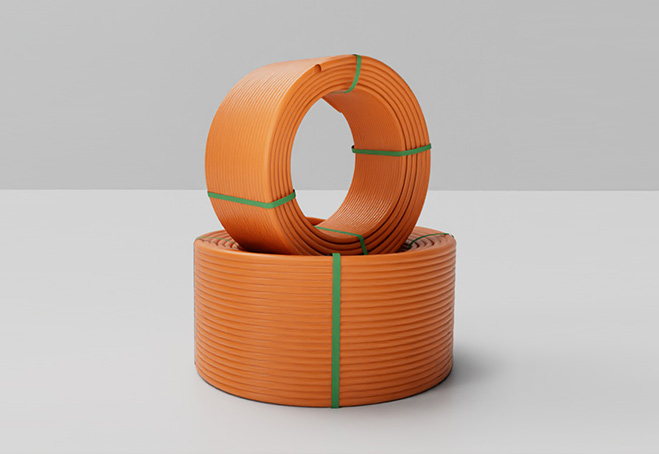

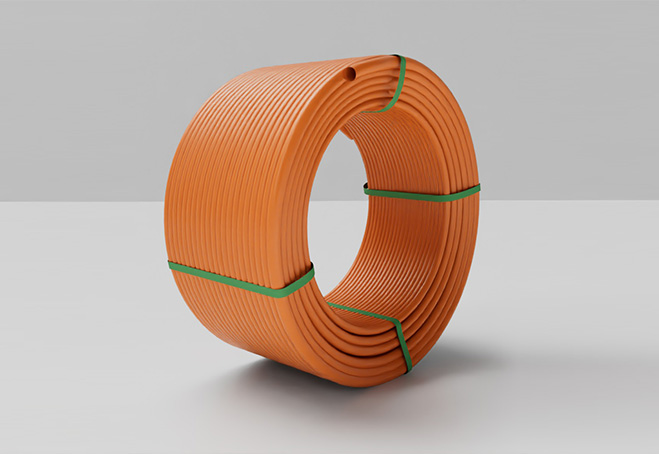

DescripciónEl conducto de HDPE es el material preferido para proteger los cables eléctricos y de telecomunicaciones. Ofrece una resistencia química y a la corrosión inigualable, además de ser flexible, duradero y estar disponible en bobinas de gran longitud para reducir las juntas y el tiempo de instalación.
Parametros|
Presión nominal |
SDR 7.4 |
SDR 9 |
SDR 11 |
SDR 13.6 |
SDR 17 |
SDR 21 |
SDR 26 |
SDR 33 |
|
PN 25 |
PN 20 |
PN 16 |
PN 12.5 |
PN 10 |
PN 8 |
PN 6 |
PN 5 |
|
|
Medida nominal DN (mm) |
Espesor de pared mínimo (mm) |
Espesor de pared mínimo (mm) |
Espesor de pared mínimo (mm) |
Espesor de pared mínimo (mm) |
Espesor de pared mínimo (mm) |
Espesor de pared mínimo (mm) |
Espesor de pared mínimo (mm) |
Espesor de pared mínimo (mm) |
|
20 |
3.0 |
2.3 |
2.0 |
– |
– |
– |
– |
– |
|
25 |
3.5 |
3.0 |
2.3 |
2.0 |
– |
– |
– |
– |
|
32 |
4.4 |
3.6 |
3.0 |
2.4 |
2.0 |
– |
– |
– |
|
40 |
5.5 |
4.5 |
3.7 |
3.0 |
2.4 |
2.0 |
– |
– |
|
50 |
6.9 |
5.6 |
4.6 |
3.7 |
3.0 |
2.4 |
2.0 |
– |
|
63 |
8.6 |
7.1 |
5.8 |
4.7 |
3.8 |
3.0 |
2.5 |
– |
|
75 |
10.3 |
8.4 |
6.8 |
5.6 |
4.5 |
3.6 |
2.9 |
– |
|
90 |
12.3 |
10.1 |
8.2 |
6.7 |
5.4 |
4.3 |
3.5 |
– |
|
110 |
15.1 |
12.3 |
10.0 |
8.1 |
6.6 |
5.3 |
4.2 |
– |
|
125 |
17.1 |
14.0 |
11.4 |
9.2 |
7.4 |
6.0 |
4.8 |
– |
|
140 |
19.2 |
15.7 |
12.7 |
10.3 |
8.3 |
6.7 |
5.4 |
– |
|
160 |
21.9 |
17.9 |
14.6 |
11.8 |
9.5 |
7.7 |
6.2 |
– |
|
180 |
24.6 |
20.1 |
16.4 |
13.3 |
10.7 |
8.6 |
6.9 |
– |
|
200 |
27.4 |
22.4 |
18.2 |
14.7 |
11.9 |
9.6 |
7.7 |
– |
|
225 |
30.8 |
25.2 |
20.5 |
16.6 |
13.4 |
10.8 |
8.6 |
– |
|
250 |
34.2 |
27.9 |
22.7 |
18.4 |
14.8 |
11.9 |
9.6 |
– |
|
280 |
38.3 |
31.3 |
25.4 |
20.6 |
16.6 |
13.4 |
10.7 |
– |
|
315 |
43.1 |
35.2 |
28.6 |
23.2 |
18.7 |
15.0 |
12.1 |
9.7 |
|
355 |
48.5 |
39.7 |
32.2 |
26.1 |
21.1 |
16.9 |
13.6 |
10.9 |
|
400 |
54.7 |
44.7 |
36.3 |
29.4 |
23.7 |
19.1 |
15.3 |
12.3 |
|
450 |
61.5 |
50.3 |
40.9 |
33.1 |
26.7 |
21.5 |
17.2 |
13.8 |
|
500 |
– |
55.8 |
45.4 |
36.8 |
29.7 |
23.9 |
19.1 |
15.3 |
|
560 |
– |
62.5 |
50.8 |
41.2 |
33.2 |
26.7 |
21.4 |
17.2 |
|
630 |
– |
70.3 |
57.2 |
46.3 |
37.4 |
30.0 |
24.1 |
19.3 |
|
710 |
– |
79.3 |
64.5 |
52.2 |
42.1 |
33.9 |
27.2 |
21.8 |
|
800 |
– |
89.3 |
72.6 |
58.8 |
47.4 |
38.1 |
30.6 |
24.5 |
|
900 |
– |
– |
81.7 |
66.1 |
53.3 |
42.9 |
34.4 |
27.6 |
|
1000 |
– |
– |
90.2 |
73.5 |
59.3 |
47.7 |
38.2 |
30.6 |
|
1200 |
– |
– |
– |
88.2 |
71.1 |
57.2 |
45.9 |
36.7 |
|
1400 |
– |
– |
– |
102.9 |
83.0 |
66.7 |
53.5 |
42.9 |
|
1600 |
– |
– |
– |
117.5 |
94.8 |
76.2 |
61.2 |
49.0 |
|
1800 |
– |
– |
– |
– |
106.6 |
85.8 |
68.8 |
55.1 |
|
2000 |
– |
– |
– |
– |
118.5 |
95.3 |
76.4 |
61.2 |
